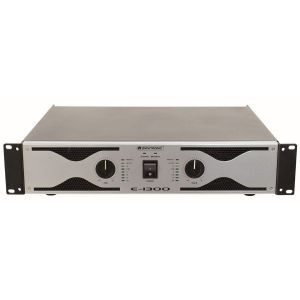

Amplificator Omnitronic E 1300

Omnitronic
NOU
LICHIDARE STOC
+CADOU
Amplificator Omnitronic E 1300
  • Amplificator Omnitronic E 1300
Produsul nu mai face parte din oferta noastră
2 ani

Amplificator Omnitronic E 1300

Descriere Amplificator Omnitronic E 1300

  •     2 operating modes can be selected (stereo or bridged) with LED indicators
  •     Limiter, switchable
  •     Speaker switch-on delay
  •     2 level controls
  •     Each channel with LED for activated protective circuit (protect) and 7-fold output meter with clip LED
  •     Complete protection set against short-circuit, overheat, DC voltage, power on/off transients
  •     Groundlift switch against humming
  •     Fan cooling
  •     Signal inputs via XLR or 6.3 mm mounting jacks
  •     Speaker outputs via lockable Speaker jacks and pairs of screw terminals
  •     8-ohm bridge operation via screw terminals or additional Speaker plug
  •     Rack installation with 2 units
  • Power supply:    115/230 V AC, 50/60 Hz ~
  • Power consumption:    690 W (1/8 power)
  • Power output sine:
  • Stereo 4 ohms    2 x 650 W
  • Stereo 8 ohms    2 x 350 W
  • 8 ohms bridged    1 x 1300 W
  • Frequency range:    10-50000 Hz, ± 1.5 dB
  • Damping factor:    >350
  • Distortion factor:    0.1 %
  • Slew rate:    45 V/µsec
  • S/N ratio:    >100 dB
  • Channel seperation:    >70 dB/ 1 kHz
  • Input sensitivity:    0.77 V
  • Input impedance:    21 kohms
  • Input voltage:    max. 21 dBV/9V
  • Input connectors:    2 x XLR, 2 x jack
  • Output connectors:    2 x Speaker, 1 x Speaker (bridge), 2 x pairs of screw terminals
  • Control elements:    power switch, level control per channel, mode switch (stereo/bridged), limiter selector, groundlift selector
  • LED indicators:    stereo, bridged (globally), protect, and 7-fold output meter with clip LED (per channel)
  • Protection circuits:    short-circuit, overheat, DC voltage, power on/off transients, softstart
  • Construction:    steel chassis with aluminum front panel
  • Dimensions (DxWxH):    375 x 482 x 100 mm
  • Weight:    14 kg
Specificații Amplificator Omnitronic E 1300
THD0.01 %
SNR> 100 dB
Impedantestereo 4-8 Ohm, sau mono 8 Ohm
Intrare2 x XLR / Jack mama
Iesire2 x Speakon
Racire2 x Ventilatoare
Inaltime2 U
Greutate14 kg
