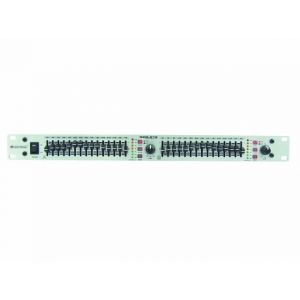

Egalizator Omnitronic GEQ 215

Omnitronic
NOU
LICHIDARE STOC
+CADOU
Egalizator Omnitronic GEQ 215
  • Egalizator Omnitronic GEQ 215
  • Egalizator Omnitronic GEQ 215
Produsul nu mai face parte din oferta noastră
2 ani

Egalizator Omnitronic GEQ 215

Descriere Egalizator Omnitronic GEQ 215

Aplications:

  • Via the EQ range selector, the display can be switched from ±6 dB to ±15 dB
  • EQ-In/Out switch for quick comparison of the sound with equalizer or without
  • The overall output-level can be adjusted via the level-control
  • LED-displays for all important functions

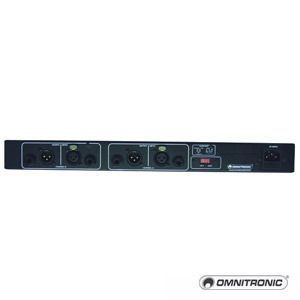

  • Inputs and outputs via 6.3" jack sockets and XLR-sockets
  • 19" rack-mounting possible

TECHNICAL DATA

Power supply:

230 V AC, 50 Hz ~

Power consumption:

10 W

Input impedance:

10/20 kOhms (unb./bal.)

Output impedance:

300/150 kOhms (unb./bal.)

In/Out connectors:

XLR, jack

S/N-ratio:

>95 dB

Crosstalk:

>90 dB

Distortion:

< 0.01 %

Frequency range:

20 Hz - 20 kHz, ±0.5 dB

Output level:

- ~ to + 6 dB

Control range:

±6 dB or ±15 dB

Frequencies:

25/40/63/100/160/250/400/630Hz/1k/1.6k/2.5k/4k/6.3k/10k/16 kHz

Low Cut:

30 Hz, -3 dB

Dimensions (WxDxH):

483 x 175 x 44 mm

Weight:

3 kg
