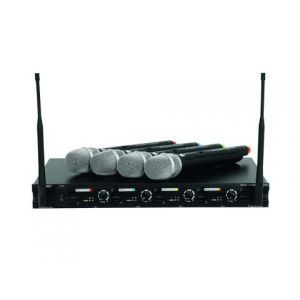

Microfon fara fir Omnitronic UHF 204
  • Microfon fara fir Omnitronic UHF 204
Produsul nu mai face parte din oferta noastră
2 ani

Microfon fara fir Omnitronic UHF 204

Descriere Microfon fara fir Omnitronic UHF 204

  • 4-channel receiver unit and 4 hand-held microphones with UHF PLL technology
  •     Operation in the low-interference UHF band (863-865 MHz) with 4 fixed frequencies
  •     Diversity system with two removable antennas (TNC connection)
  •     4 separate channels with volume controls and LEDs for power supply, carrier signal and audio signal
  •     Balanced XLR output per channel
  •     6.3 mm jack for mixed signal output
  •     Jack cable included
  •     Microphones with mute switch and color caps for distinction on stage
  •     Matching pocket transmitters can be ordered separately
  •     Receiver unit in a rugged metal housing
  •     Incl. mounting brackets for 483 mm rack installation
  •     License-free and approved in the EU
  • System:    Diversity, 4 channels
  • Carrier frequency:    863.010 MHz, 863.420 MHz,
  •     864.300 MHz, 864.990 MHz
  • Coverage:    50 m (with line-of-sight)
  • RF power output:    10 mW
  • Modulation method:    F3F
  • Frequency response:    40 Hz - 18 kHz
  • S/N ratio:    >105 dB
  • Selectivity:    >80 dB
  • T.H.D.:    <0.5 % at 1 kHz
  • Audio outputs:
  • Mic:    4 x XLR, bal.
  • Level/impedance:    400 mV, 2.2 kohms
  • Line:    6.3 mm jack, unbal.
  • Level/impedance:    200 mV, 2.2 kohms
  • Power supply
  • Receiver:    230 V AC, 50 Hz ~ via supplied power unit
  • Power consumption:    10 W
  • Microphones:    2 x 1.5 V battery, type AA
  • Battery life    approx. 10 hours
  • Dimensions, weight
  • Receiver:    420 x 220 x 50 mm (LxBxH), 3 kg
  • Microphones:    50 x 265 mm (DxL), 280 g

Specificații Microfon fara fir Omnitronic UHF 204
Capsula microfonDinamic
Caracteristica polaraCardioid
Frecvente comutabileDa
IntrerupatorDa
