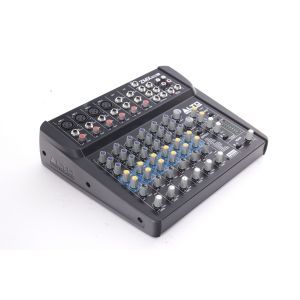

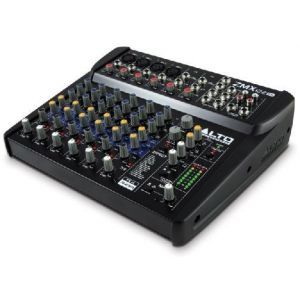

Mixere Analog Alto ZMX 122 FX

Mixere Analog Alto ZMX 122 FX

ZMX 122 FX
(0 review-uri) | Adaugă un review Stoc epuizat
629.00 lei
Alege cantitate:
Rate de la 52.42 Lei / lună


Distribuie pe

Canale Mono (Ch. 1-4)

Intrare Microfon balansata

Frecventa Raspuns : 20 Hz - 22 kHz, +/-1 dB

Distortion( THD&N): ≦0.005% la +4 dBu, 1 kHz

Gain : 0 dB -50 dB (Mic)

Max Voltage Gain: 70 dB Ch. Mic Input→Main MIx out & Tape out, 80 dB Ch. Mic input→Control room & Phones, 60 dB Ch. Mic input→Aux send

SNR (Signal Noise Rate): ≧110 dBu

Phantom power (Mic Pin2/Pin3 si Pin1) : +48 V



Line In : balansat electronic

Frecventa Raspuns : 20 Hz - 22 kHz, +/- 1 dB

Distortion (THD&N): ≦0.005% la +4 dBu, 1 kHz

Gain : 15 dBu - 35 dBu



Canalele Stereo (Ch. 5 - 8)

Line In balansat electronic

SNR (Signal Noise Ratio): ≧110 dBu

Frecventa Raspuns: 20 Hz - 22 kHz, +/- 1dB

Distortion (THD&N): ≦0.005% la +4 dBu, 1 kHz

Gain : -20 dBu la +20 dBu, 60 dB Ch. Line → Main Mix out

Max Voltage Gain: 20 dB FX return → Main Mix out, 20 dB RCA Tape input → Main Mix out

 Impedanta

Microfon In : 3.9 kOhmi

Toate celelalte intrari : 10 kOhmi sau Greater

Tape Out: 1 kOhm

Toate celelalte iesiri : 120 Ohmi

 Egalizator

Canalele mono : High ±15 dB @ 12 kHz, Mid ±15 dB @ 2.5 kHz, Low ±15 dB @ 80 Hz
Canalele stereo : High ±15 dB @ 12 kHz, Mid ±15 dB @ 2.5 kHz, Low ±15 dB @ 80 Hz

Alesis DSP

Conversie A/D si D/A : 24-bit

Rezolutie DSP : 24-bit

Efecte : Hall, Room, Vocal & Plate Reverbs Mono & Stereo Delay (timp max delay 650 ms) modulatie Chorus, Flanger & Reverb, Reverb+Delay, Reverb+Chorus, Reverb+Flanger combinate

Preseturi : 256

Controale : 16 x 16-position preset selector

Crosstalk: Adjacent Input ≦-80 dB @ 1 KHz (Ch. 1-6), Input - Output ≦-75 dB @ 1 KHz (Stereo L/R, Ch. 1-4)

 Sectiunea Main Mix

Tape, Aux, Casti Out

Nivel Output : 0 dBu Unbalanced, 1/4" Jacks, Max out +22 dBu Unbalanced, 1/4" jacks
Zgomot : ≦-90 dB @ 20 Hz ~ 22 KHz

 Alimentare: 18 V, 1500 mA

Putere nominala: 27 W
Dimensiuni : 256mm x 250mm x 72mm
Greutate : 2,3 kg



Canale mono4
Procesor efecteDa
